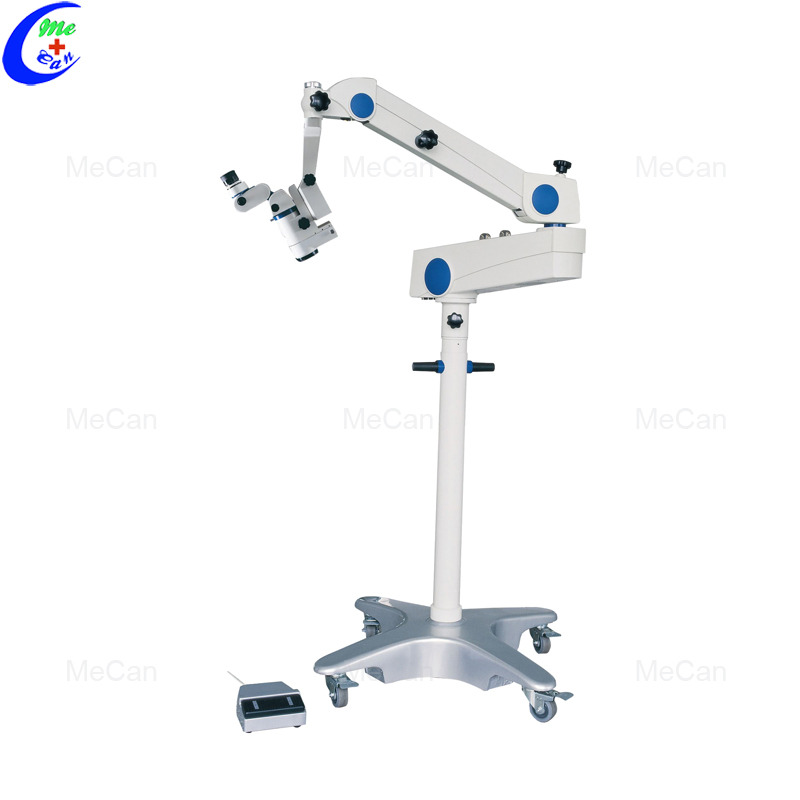

Dental Equipment Mobile LED Surgical Operating Microscope
MED-510
MED-510 universal model of operation microscope adopt high resolution and HD optic system,strongtereoscopic impression and large depth of field,LED cold light illumination,continual adjustable brightness,manual zoom, Small,flexible and movement convenient,application for all kinds of surgery ,such as stomatology and ENT and so on.
Specification
| Eyepieces | Magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. |
| Binocular tube | High brightness 90°straight binocular tube |
| Magnification | Manual 3-step changer, ratio 0.6,1.0,1.6 , total magnification 3.75x, 6.25x,10x |
| illumination | LED cold light,strong light,longer lifetime,brightness adjustable infinitely, illumination diameter of light spot Φ70mm, illumination intensity≥ 60000lux, field of viewΦ53mm,Φ32mm,Φ20mm build-in small-spot,blue light filter. |
| Objectives | f250mm(175mm,200mm,250mm,300mm,350mm,400mm etc ) |
| Focusing | Route range + -15mm. |
| Rotating head for all direction | Operate by two handles,free and easy to operate |
| Maximum length of arm | 1100mm |
MED-510A
Specification
| Eyepieces | Magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. |
| Binocular tube | 90° binocular tube |
| Magnification | Manual 3-step changer, ratio 0.6,1.0,1.6 , total magnification 3.75x, 6.25x,10x ( F 250mm) |
| Illumination | LED cold light, strong light, longer lifetime, brightness adjustable infinitely, illumination diameter of light spot Φ70mm, illumination intensity≥ 60000lux, field of viewΦ53mm,Φ32mm,Φ20mm build-in small-spot, both blue and yellow light filter. |
| Objectives | F=250mm (180mm-300mm adjustable objectives for optional) |
| Rotating head for all direction | Operate by two handles,free and easy to operate in 0-360° |
| Maximum length of arm | 1100mm |
MED-510B
Specification
| Eyepieces | Magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. |
| Binocular tube | 90° binocular tube |
| Magnification | Manual 3-step changer, ratio 0.6,1.0,1.6 , total magnification 3.75x, 6.25x,10x ( F 250mm) |
| Illumination | LED cold light, strong light, longer lifetime, brightness adjustable infinitely, illumination diameter of light spot Φ70mm, illumination intensity≥ 60000lux, field of viewΦ53mm,Φ32mm,Φ20mm build-in small-spot, both blue and yellow light filter. |
| Objectives | F=250mm (180mm-300mm adjustable objectives for optional) |
| Rotating head for all direction | Operate by two handles,free and easy to operate in 0-360° |
| Maximum length of arm | 1100mm |
Detail:
