Pictures of dental surgical instruments.pdf orthodontic pictures and names labomed microscope ASOM 510 6B
ASOM-510 universal model of operation microscope adopt high resolution and HD optic system,strongtereoscopic impression and large depth of field,LED cold light illumination,continual adjustable brightness,manual zoom, Small,flexible and movement convenient,application for all kinds of surgery ,such as stomatology and ENT and so on.
Specification
| Eyepieces |
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. |
| Binocular tube | high brightness 45° binocular tube, |
| Magnification | manual 3-step changer, ratio 0.6,1.0,1.6 , total magnification 3.75x, 6.25x,10x, |
| illumination |
LED cold light,strong light,longer lifetime,brightness adjustable infinitely, illumination diameter of light spot Φ70mm, illumination intensity≥ 60000lux, field of viewΦ53mm,Φ32mm, Φ20mm build-in small-spot,blue light filter. |
| Objectives |
f250mm(175mm,200mm,250mm,300mm,350mm,400mm etc ) |
|
Focusing
|
Route range + -15mm. |
| Rotating head for all direction | operate by two handles,free and easy to operate |
|
Maximum length of arm |
1100mm |

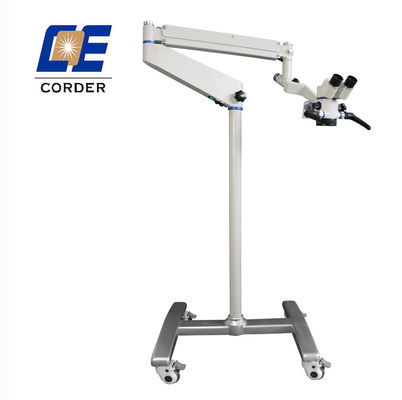

ASOM 510
We are one of the subsidiary companys of The Institute of Optics & Electronics, Chinese Academy of Sciences(CAS). Corder have been researched and developed operation microscope since 1970s,meanwhile research other optical product:Mask aligner/Adaptive optics vision cure apparatus and so on.
| Model | Gross weight(Kg) | Net weight(Kg) | Cartons | dimensions(mm) |
| ASOM 510 | 53 | 49 | One Carton | 1180X535X230 |
ISO Patent
