Medical Metal Ophthalmic (MS-400D), E.N.T and Neurological Surgical Microscope

1.0 Units
MOQ
Medical Metal Ophthalmic (MS-400D), E.N.T and Neurological Surgical Microscope
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: MS-400D
Power Source: Electric
Warranty: 2 years
After-sale Service: Online technical support
Material: Metal, Plastic
Shelf Life: 2 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: GB15979-2002
기본 정보
인증: ce
Model Number: MS-400D
결제 및 배송 조건
Supply Ability: 500000 Unit/Units per Year
제품 설명

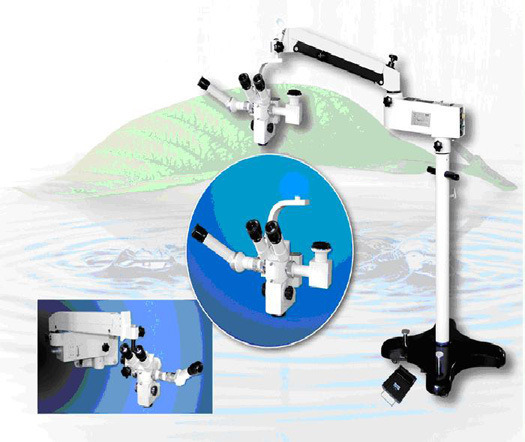

MS-400D Medical Ophthalmic,E.N.T and Neurological Surgical Microscope

Application:
This Model is a light multi-function operation microscope It can be used in the operations such as brain surgery, ENT,
ophthalmology etc. The optical routeway of the microscope adopts the parallel optical routeway and it has the features of big
field depth, wide vision field and uniform illumination.
If necessary, the single ocular teaching scope, camera interface and CCD interface can be chosen. The instrument also is ideal one
for animal dissection and microsurgery teaching.
Feature:
*1.The parallel optical routeway, main scope and assistant scope with single optical routeway.
*2.Optical system has the features of big field depth, wide vision field and lighting equally.
*3.5-level magnification changer:Zooming Ratio:1:6.
*4.Motorized focusing by foot control.
*5.Cold light source illumination, no heating.
*6. Move up and down controlled by Gas spring and easy to move and lock
*7.Gas spring balance stand.
*8.Option:Light distributor, camera interface, CCD inerface and 45° or 0° eyepiece.
Specification
*1.Binocular tube focus: 160mm
*2.Eyepiece: 12.5X wide angle, with visual field adjustment and position looking
*3.Big objective lens: F: 200, 250, 300, 400mm
*4.Fine focusing range: 40mm
*5.Range of ocular distant: 50~75mm
*6.Tilting range in pitching: -5°~90°
*7.Tilting range in swing: ±30°
*8.Cold light source: 12V, 100W;Max. brightness:80000Lux
*9.Voltage and frequency of power supply:220V±10%, 50Hz±1Hz
or 110V±10%, 60Hz±1Hz
